Video safety · Four-channel video safety with ADAS + DMS

Every angle.
Every mile.

A four-channel camera for long-haul trucking and high-risk fleets: forward, cabin, side and rear coverage, with full ADAS and DMS built in.

Get a quote How it differs
IQ-CAM ME40 four-channel camera, shown from two angles on its windshield mount
4
Channels: forward, cabin, sides and rear
4
Weeks of footage onboard on a 512 GB card
ADAS
Collision and lane-departure alerts, in real time
360°
Blind-spot protection around the vehicle
Why four channels

Forward-only isn't enough on high-risk routes.

Lane merges, sideswipes and T-bones happen where a forward camera cannot see. One unproven blind-spot incident can swallow a quarter, and multi-angle proof is what shuts it down.

  • Forward, cabin, side and rear, every angle covered every mile
  • Optional side, rear and mini-dome cameras, mixed to suit the route
  • Side, rear and cab footage backing the driver in the same frame
Side camera covering the blind spot alongside a truck
ADAS + DMS

Flagged in the moment. Coachable after.

ADAS watches the road for collision risk and lane departure. DMS watches the cab for distraction and fatigue. Both alert in real time, and both leave a clip.

  • Collision and lane-departure alerts
  • Distraction and fatigue detection on the cabin lens
  • Driver scorecards built from what actually happened
CH1 ROAD0.8 SCH2 CABEYES OFFADAS · 08:14:22Too close, 0.8 sDMS · 08:14:22Eyes off the roadBOTH ALERT IN THE CAB. BOTH LEAVE A CLIP.
Evidence

Four weeks onboard, and the whole truck in the app.

A 512 GB card holds about four weeks, which is long enough that a claim filed weeks after the fact still has footage behind it. Live multi-channel view puts every angle in a phone.

  • Live multi-channel view and evidence in the mobile app
  • Geofencing and retroactive geofencing across your history
  • Evidence dashboard, automated reporting and real-time alerts

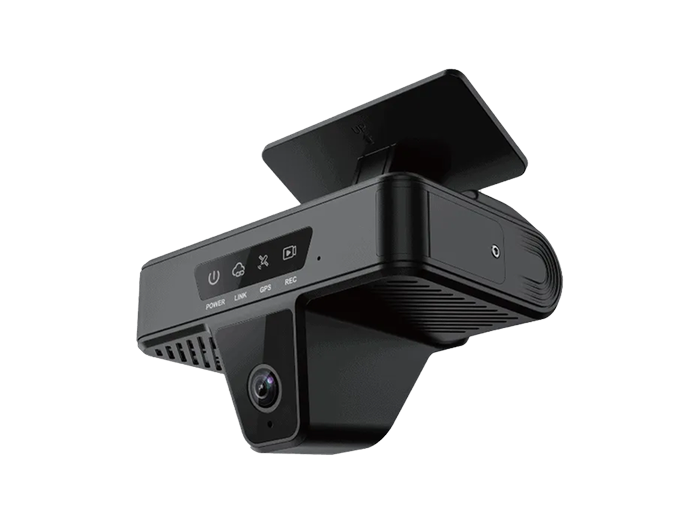

IQ-CAM ME40 on its windshield mount
In-cab detection

What the driver-facing lens picks up.

ME40 watches the cab as well as the road. These are the events it flags without anyone reviewing tape.

Drowsiness, flagged in the cabThe driver-facing lens watches for closing eyes and yawning, and marks the moment it sees them.
Seat belt checkIn-cab detection logs an unbelted driver as an event, so it surfaces in coaching instead of going unnoticed.
IQ-CAM family

How the three cameras differ

Same dashboard, same evidence workflow, same month-to-month terms. Everything below is a line where the three cameras genuinely part ways.

How the IQ-CAM models differ

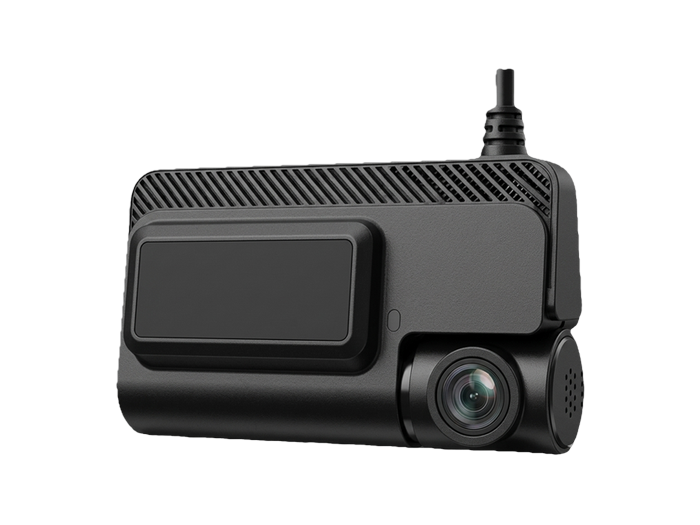

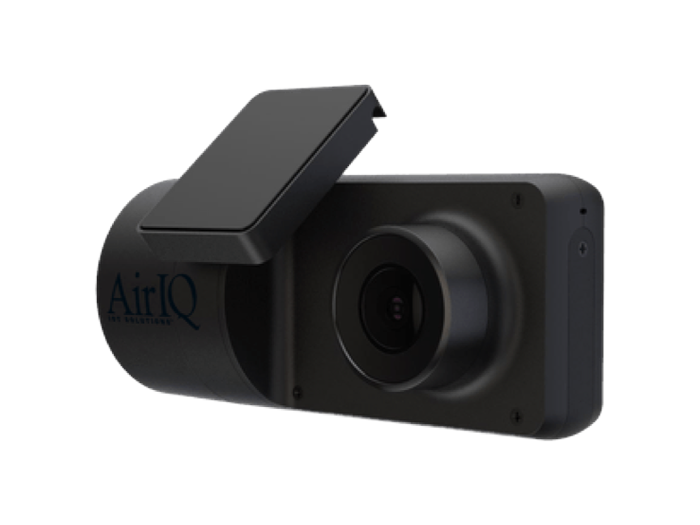

FeatureIQ-CAM-12IQ-CAM-12Dual-facingSee IQ-CAM-12IQ-CAM MC30IQ-CAM MC30Forward video safetySee IQ-CAM MC30IQ-CAM ME40IQ-CAM ME40Four-channel + ADASYou are here
What it is for
Best forFleets that want both halves of a disputed claim answeredDelivery vans and small fleets that need forward proof, fastLong-haul and high-risk fleets where the blind spots cause the claims
What it tracksVehicles, the road, and the driverVehicles and the road aheadVehicles, the road, the cab, and both sides
Cameras and coverage
Camera channels2 built in, plus up to 4 auxiliary2 channel, road-facing4 channel: forward, cabin, side, rear
Road-facing video1080p, adjustable angle1080p forward proof1080p forward, part of the 360° set
Cab-facing videoBuilt in, 720p with infraredOptional add-on camera, not fitted as standardBuilt in, with driver monitoring
Side, rear and dome camerasUp to 4 auxiliary camerasOptional side or cargo cameraOptional side, rear and mini-dome
360° blind-spot coverage––✓
Onboard footage retentionmicroSD behind an anti-tamper panelAbout 14 days on a 128 GB cardAbout 4 weeks on a 512 GB card
What the camera watches for
ADAS: collision and lane departure––✓
DMS: distraction and fatigueMachine-vision distraction detection–Full driver monitoring, real-time
Live multi-channel view in the appLive video and snapshotsLive view, single channelLive view across all channels
Install
Typical install timeProfessional fit, booked around your scheduleAbout 15 minutes on an OBD or power connectorProfessional fit, add-on cameras at the same visit
Power
Power sourceVehicle, 12V to 24V hardwiredOBD or power connectorVehicle, hardwired
Positioning and network
How it reports positionGPS with AGPSBuilt-in GPSBuilt-in GPS
Cellular3G and 4G LTE4G LTE4G LTE
Environment
Operating temperature0°C to +70°CCab ratedCab rated
Size115 x 70 x 51 mm––
Every AirIQ product
Solution sheetIQ-CAM sheetMC30 sheetME40 sheet

Only the lines where these 3 differ are shown. Everything they share, including the dashboard and month-to-month terms, is on the full comparison.

Tech specs

IQ-CAM ME40, in full.

Cameras
Channels
Four channel: forward, cabin, side and rear
Coverage
360° blind-spot protection
Add-on cameras
Optional side, rear and mini-dome, mixed to suit the route
Detection
ADAS
Collision and lane-departure alerts, in real time
DMS
Distraction and fatigue detection, flagged in the moment and coachable after
Storage and evidence
Onboard retention
About 4 weeks on a 512 GB SD card
Evidence
Evidence dashboard, automated reporting, real-time alerts
In your dashboard
Live
Live multi-channel view and snapshots, single pane of glass
Geofencing
Geofencing, including retroactive geofencing
Coaching
Driver scorecard
Sharing
Device location sharing, to cut status-check calls
Mobile
Full-feature app with live multi-channel view

From the AirIQ IQ-CAM ME40 solution sheet.

All specifications are typical and subject to change without notice.

AirIQ publishes a solution sheet for the ME40, not a full electrical spec sheet. Voltage, dimensions and operating temperature are not stated, so they are omitted here.

Take it with you

Solution sheet

One page, no form. Forward it to whoever signs off on the fleet budget.

IQ-CAM ME40 solution sheetCommercial video safety for long-haul and high-risk fleets · four channels, ADAS + DMS Download →
IQ-CAM ME40 questions

Asked about the IQ-CAM ME40.

What is the difference between ADAS and DMS?
ADAS watches the road: collision risk and lane departure. DMS watches the driver: distraction and fatigue. The ME40 is the only camera in the IQ-CAM family with both.
Do I have to fit all four channels?
No. Forward and cabin come as standard, and the side, rear and mini-dome cameras are optional. Fit the angles that matter on the truck and add to it later.
How much footage does it hold?
About four weeks on the 512 GB card, which is roughly double what the MC30 holds. Events also upload to your dashboard as they happen.
Is the ME40 overkill for a small fleet?
Fleet size isn't what decides it, the route is. A six-truck operation running tight city delivery, with a lot of backing and blind-side turns, has more to gain from four channels than a thirty-truck fleet on open highway. If your risk really is all ahead of the truck, the MC30 covers that for less. Where the claims come from what the driver couldn't see, the ME40 is what pays for itself.
Is there a contract?
No. Month-to-month, no long-term contract, no early-termination fee.
