Hardwired vehicle tracking · Rugged tracking for equipment and trailers

Built for dust,
rain and vibration.

Long-life tracking for the toughest jobs. An IP66 housing shrugs off what heavy equipment and trailers sitting outdoors actually face, all year.

Get a quote How it differs

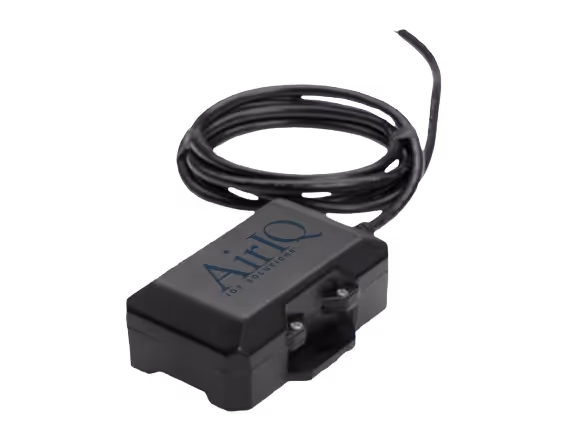

IQ-WIRED-28 rugged hardwired GPS tracking device
IP66
Housing, rated for dust and driving rain
Hours
Engine run-time, hardwired and honest
I/O
Digital inputs and outputs for site equipment
-30°C
Down to, and up to +70°C
Service on real hours

Maintenance planned on run-time, not on guesswork.

A generator or an excavator does not have an odometer that means anything. Hardwired engine run-time gives you the number service intervals should actually be built on.

  • Hardwired engine run-time, so service is planned on real hours
  • Trailer location, detachment, and idle time in any weather
  • IP66 against dust, rain and constant vibration
Excavator parked on rocky ground at a remote site
Inputs and outputs

Wire it to what the site cares about.

Digital inputs and outputs let the device report on the equipment around it: a pump running, a door opening, a generator under load.

  • Digital inputs and outputs for generators, pumps and door sensors
  • Up to 5 digital inputs and 3 relay driver outputs across the family
  • Everything on the same map as your trucks
IQ-Wired family

How the three models differ

One platform and one dashboard. What changes is where the device can go, what it survives, and what it can read off the asset it is wired into.

How the IQ-Wired models differ
FeatureIQ-WIRED-13AIQ-WIRED-13ACompact hardwiredSee IQ-WIRED-13AIQ-WIRED-68IQ-WIRED-68Slim & concealableSee IQ-WIRED-68IQ-WIRED-28IQ-WIRED-28Rugged IP66You are here
What it is for
Best forEveryday vehicles that need a tough, permanent trackerDriver insight, lease enforcement, and theft recoveryHeavy equipment and trailers living outdoors
What it tracksVehiclesVehiclesEquipment and trailers
Install
Typical install timeBooked around your scheduleTwo-wire setup, fast to concealBooked around your schedule
Concealable–✓–
Power
Power sourceVehicle, hardwiredVehicle, two-wireVehicle or equipment, hardwired
Positioning and network
Cellular4G LTE Cat M1LTE Cat 1 and Cat M1LTE Cat 1 and Cat M1
What you get back
Engine diagnostics–Odometer and engine hoursEngine run-time
Remote starter disable–✓–
Digital inputs and outputs––For generators, pumps and door sensors
Environment
Weatherproof housingIn-cabIn-cabIP66
Size77 x 62 x 20 mm––
Every AirIQ product
Solution sheetIQ-WIRED-13A sheetIQ-WIRED-68 sheetIQ-WIRED-28 sheet

Only the lines where these 3 differ are shown. Everything they share, including the dashboard and month-to-month terms, is on the full comparison.

Tech specs

IQ-WIRED-28, in full.

This model
Role
Long-life tracking for equipment and trailers living outdoors
Housing
IP66, rated for dust, rain and constant vibration
Runtime
Hardwired engine run-time, so service is planned on real hours
Inputs and outputs
Digital I/O for generators, pumps and door sensors
Trailers
Location, detachment and idle time in any weather
Positioning
Constellations
GPS, GLONASS, BeiDou, Galileo and QZSS depending on variant
Augmentation
SBAS: WAAS, EGNOS, MSAS, GAGAN
Accuracy
Approximately 2.0 m CEP, open sky
Update rate
Up to 4 Hz
Sensitivity
Tracking to -167 dBm, acquisition to -148 dBm cold start
Anti-jamming
Included on selected variants
Connectivity
Network
LTE Cat 1 and Cat M1, with HSPA, UMTS and GSM fallback depending on variant
Antennas
Internal or external GPS and cellular options, with tamper monitoring on external
SIM
Internal access
Inputs and outputs
Digital inputs
Up to 5, with programmable bias
Digital outputs
Up to 3 relay driver outputs, 150 to 200 mA
Analog
External ADC inputs
Serial
Up to 2 TTL ports
Motion
Built-in triple-axis accelerometer for driver behavior and impact
Power
Operating voltage
9V to 30V DC start-up, 7V to 32V momentary
Consumption
Under 3 mA deep sleep, about 60 to 70 mA actively tracking at 12V
Backup battery
5200 mAh (5.2 Ah) rechargeable lithium-ion, about 500 message cycles on a full charge
Physical
Dimensions
From 76 x 64 x 25 mm to 114 x 80 x 39 mm, variant dependent
Weight
68 g to 230 g, variant dependent
Operating temperature
-30°C to +70°C
Storage temperature
-40°C to +85°C
Connector
20-pin standard connector

IQ-WIRED-28. Figures marked as family-wide span the IQ-Wired range; the 28-specific figures come from its solution sheet.

All specifications are typical and subject to change without notice.

Take it with you

Solution sheet

One page, no form. Forward it to whoever signs off on the fleet budget.

IQ-WIRED-28 solution sheetRugged tracking for equipment and trailers · IP66, engine run-time and digital I/O Download →
IQ-WIRED-28 questions

Asked about the IQ-WIRED-28.

What does IP66 actually mean?
Dust-tight, and protected against powerful water jets from any direction. In practice it means the device survives a wash bay, a job site, and a winter parked outside.
Can it track a trailer?
Yes, where the trailer has power. It reports location, detachment and idle time. For trailers and equipment with no power at all, IQ-BAT runs for years on replaceable AA lithium cells, and for powered trailers the Phillips Connect devices add tire, brake and light health.
How is the 28 different from the 13A and the 68?
The housing and the I/O. The 28 is the only one of the three rated IP66, and the only one with digital inputs and outputs for site equipment.
Is there a contract?
No. Month-to-month, no long-term contract, no early-termination fee.
